Product Feature:
- 5Hz-20MHz Usable Frequency Response
- Enhanced Battery Powered
- Low loss design
- 0.5V-5V Adjustable Dropout Voltage
- 8Vpp Maximum Injection Signal
- 12 A Maximum Current
- 50 Ohms Modulation Input Impedance
- 400VDC Maximum Input
- Easily Measure input Filters and PSRR
Application
- PSRR measurement on an E5061B/Oscilloscope (Tektronix) -Brochure
Product Introduction:
Picotest J2122A Power Line Signal Injector (Enhanced Battery Version)
The J2122A power line signal injector is a rechargeable professional device with outstanding performance and multifunctional features, designed to meet the high demands of users for signal injection and measurement. With its wide frequency response, adjustable voltage, high-intensity signal injection, and the convenience of eliminating complex wiring for power supply, the J2122A will become your reliable assistant in signal processing work.
It must be noted that the foundation of this product, J2122A, is derived from J2120A. To meet customers' requirements for measuring bandwidth, after enhancements, the frequency response range has been expanded from 5Hz to 20MHz, ensuring stable signal output for both low and high frequencies. Whatever signal you are dealing with, the J2122A can handle it with ease.
Furthermore, the J2122A features an adjustable dropout voltage range of 0.5V to 5V, allowing you to flexibly adjust the voltage according to specific requirements to ensure the signal output meets the desired specifications. With a maximum injection signal strength of 8Vpp, the J2122A ensures sufficient signal strength for your equipment to achieve the required signal quality. Additionally, the J2122A can undertake a maximum current of 12A, providing robust power support to tackle various challenges. The 50 Ohms modulation input impedance ensures precise input and high-quality output signals, enhancing overall performance.
The J2122A also supports a maximum input voltage of 400VDC, ensuring that devices operate within a safe range and protecting your equipment from the impact of excessive voltage. Moreover, similar to the J2120A, the J2122A can easily measure input filter differences and PSRR, helping you accurately assess and optimize signal quality.
This product stands out for its exceptional features and safety reliability, making it an indispensable tool in the field of signal processing. Whether you are a professional user or an amateur enthusiast, the advantages of this product will bring unparalleled convenience to you. Choose J2122A and experience excellence at its best!

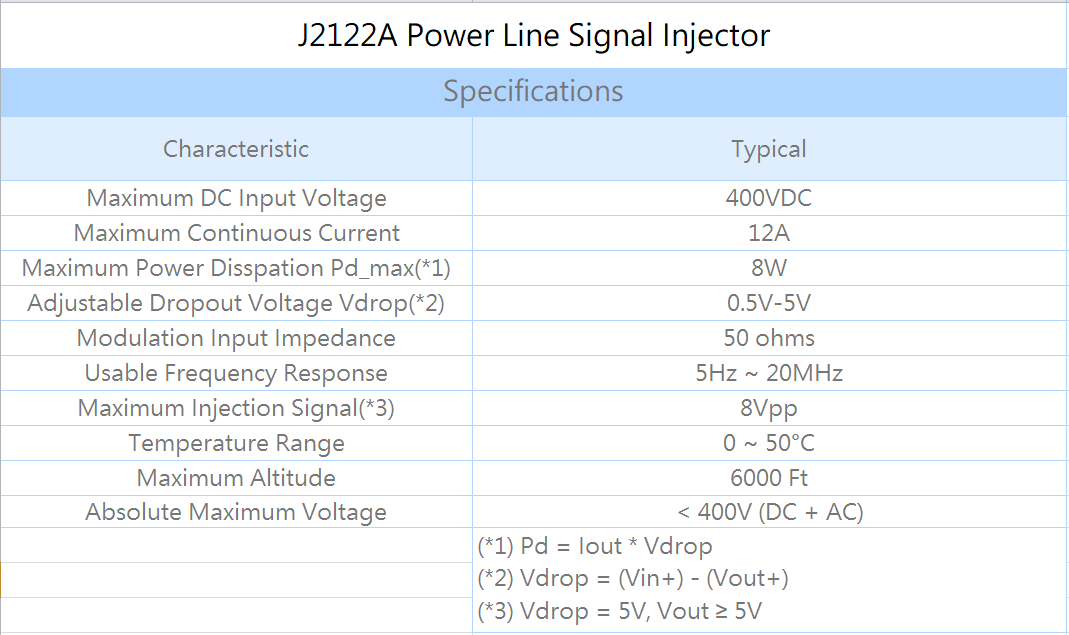

Specifications:
